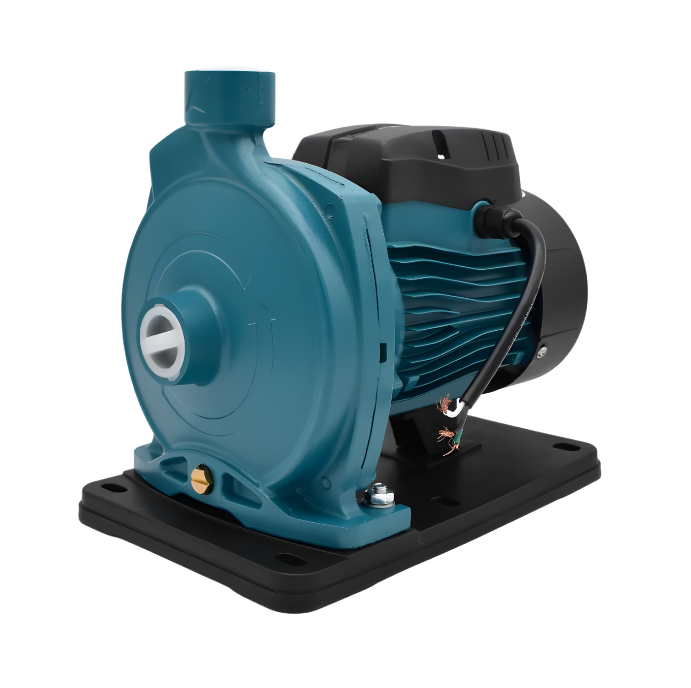

ACmk75 DV Centrifugal Pumps
ACmk 75 DV (1 HP), 110/220V, 60Hz, 1"×1"
☆☆☆☆☆
(0)
About this item
- Cast iron pump body and support under special anti-rust treatment
- Impeller: Brass
- AISI 304 shaft
- Front bracket: Cast iron
- Maximum liquid temperature: +60°C
- Maximum suction: +8m
- Product code: ACmk75 DV
- HP: 1
- VOLTAGE: 110/220
- Phase:
- FREQUENCY (Hz): 60
- PIPE SIZE: 1” × 1”
- MAX.HEAD (Hmax) : 37 m
- MAX.DELIVERY (Qmax) : 106 l/min
- Product class: Premium
- Availability: In stock
- Warranty: 24 Months
KANZO ACmk75 DV Centrifugal Pump (1 HP) can transfer clean water or other liquids like water in physical and chemical properties. It’s suitable for industrial use and urban water supply, pressure boosting for high buildings and firefighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for hot and cold water or supporting equipment etc.
- Cast iron pump body and support under special anti-rust treatment
- Impeller: Brass
- AISI 304 shaft
- Mechanical seal: carbon/ceramic/stainless steel
- Front bracket: cast iron
- Maximum liquid temperature: +60°C
- Maximum suction: +8m
Pump Features
- Single phase
- Heavy duty continuous work
- Motor housing: aluminum
- C&U bearing
- Motor with copper winding
- Low noise& Long-life bearing
- Built-in thermal protecter for single phase motor
- Insulation class: F
- Protection class: IP×4
- Maximum ambient temperature: +50°C
- Cooling: External ventilation
- Continuous duty
- pH: 6.5 to 8.5
- Single suction centrifugal pump with high efficiency
- Reliable quality, stable performance
- High head, medium flow rate
- Motor bracket with feet supporting
- Brand: KANZO Pumps
- Model number:
- Type: Centrifugal
- Usage: Domestic
- Color: Blue & Green
- Material:
- MAX.DELIVERY (Qmax) : 106 l/min
- Total head: 37 m
- Inlet size: 1″
- Outlet size: 1″
- Country of origin: Made in China (ITALIAN STANDARD)
- Phase:
- Thermal overload protector: yes
- Power Supply: 110/220
- Power Rating:
- Motor power: 1 HP
- Corrosion Resistant: yes
- Other features: NILL
- Weight:
- Net Quantity: 1 Count
- Included Components:
- Warranty: 2 years
- Service Type: NILL
- Covered in warranty: Yes
- Not covered in warranty: NILL
KANZO ACmk75 DV Centrifugal Pump (1 HP) can transfer clean water or other liquids like water in physical and chemical properties. It’s suitable for industrial use and urban water supply, pressure boosting for high buildings and firefighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning, circulation and pressure boosting for hot and cold water or supporting equipment etc.
- Cast iron pump body and support under special anti-rust treatment
- Impeller: Brass
- AISI 304 shaft
- Mechanical seal: carbon/ceramic/stainless steel
- Front bracket: cast iron
- Maximum liquid temperature: +60°C
- Maximum suction: +8m
Pump Features
- Single phase
- Heavy duty continuous work
- Motor housing: aluminum
- C&U bearing
- Motor with copper winding
- Low noise& Long-life bearing
- Built-in thermal protecter for single phase motor
- Insulation class: F
- Protection class: IP×4
- Maximum ambient temperature: +50°C
- Cooling: External ventilation
- Continuous duty
- pH: 6.5 to 8.5
- Single suction centrifugal pump with high efficiency
- Reliable quality, stable performance
- High head, medium flow rate
- Motor bracket with feet supporting
